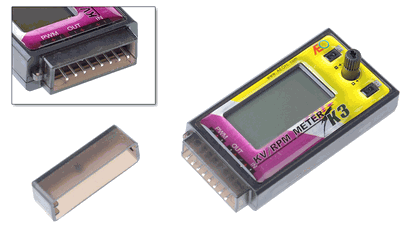

AEO K3 Advance KV/RPM Meter
--? Measure the RPM, KV and frequency of BL motor, and keep displaying the max readout.
--??Accurately measure the voltage of power battery.
--? Measuring RPM methods: Counter electromotive force/ photo electricity. Hall electromagnetism.
--? PWM signal output function can directly connect ESC for testing, and the extra radio control equipment is unnecessary. For example: the servo need to connect 5V battery as supplying power.
Working Temperature Range: -20? to 50?
Dimension: 33x 69x 11mm
Working Voltage Range: 5.5-40V
How to use?
1.?????? Introduction of Plug and Button?
Plug B? ?Measurement sampling and current supply plug, the ?S? is the sampling pin,?+? ?-? is 5.5?40V current supply pin.
Plug C? Circumscribed testing module( photo electricity /Hall testing module) power supply, the output voltage is 5V.
Button A?Short press to switch the interface between voltage, frequency, rpm and KV; Long press to turn on/off the ?Hold? function.
Button B?Firstly press the button shortly, displaying the pairs of the magnets ? P?? Then short press again to increase the magnets pairs; Long press to continuously increase the magnets pairs.
Knob? ? Increase the range for PWM signal output, ?CW? is to increase, and ?CCW? is to decrease.
