EZRUN Combo A3 w/ 25A-SL ESC +12T 7800KV Brushless Motor System for 1/18 Car (Version 2)

Description

product reviews

Model

EZRUN Series Brushless System for 1/18 Car (Version 2)

Manual

1. User Manual 2. User Manual for Program Card

Accessory

Preview

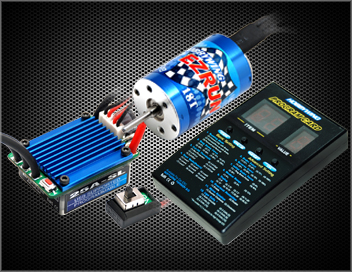

The Combo includes the following items:

      eZRun-18A-SL or eZRun-25A-SL-L brushless ESC: 1pcs
      12T / 18T (2030 sized) 1/18 scale sensorless brushless motor 1pcs
       Program card for car ESC 1pcs

Combo	ESC	Motor	KV	Main Application
COMBO-A1	EZRUN-18A-SL	12T/2030	7800	1/18 On-road competitive racing
COMBO-A2	EZRUN-18A-SL	18T/2030	5200	1/18 Off-road competitive racing
COMBO-A3	EZRUN-25A-SL-L	12T/2030	7800	1/16, 1/18 On-road competitive racing

1 Specification of The ESC

1.1 Output:

eZRun-18A-SL: Continuous current 18A, burst current 50A.

eZRun-25A-SL-L: Continuous current 25A, burst current 90A.
1.2 Input: 4-9 cells NiMH/NiCd or 2-3 cells LiPo.

1.3 BEC Output:

eZRun-18A-SL: 6V/1A

eZRun-25A-SL-L: 6V/1.5A

1.4 Resistance:

eZRun-18A-SL: 0.01 Ohm

eZRun-25A-SL-L: 0.005 Ohm

1.5 Motor Supported: Sensorless Brushless motor

1.6 Suitable Brushless Motor:

With 4-6 cells NiMH/NiCd or 2 cells Lipo: On-Road≥12T, Off-Road≥18T;

With 6-9 cells NiMH/NiCd or 3 cells Lipo: On-Road≥18T, Off-Road≥24T;

1.7 Suitable Car: 1/16 or 1/18 scale car for sportful race
1.8 Size:

eZRun-18A-SL: 31.5mm(L) * 24mm(W) * 15mm(H)

eZRun-25A-SL-L: 31.5mm(L) * 27.5mm(W) * 16mm(H)

1.9 Weight: (Without wires)
eZRun-18A-SL: 19g

eZRun-25A-SL-L: 23g

2 Specification of The Motor (Please refer to the hyper-link: eZRun 2030 sized motor )

Model

KV

Diameter
mm

Length
mm (Without Shaft)

Shaft
mm

Shaft Length
mm

Weight
g

12T/SL-2030

7800

20.0

30.0

2.00

10

18T/SL-2030

5200

20.0

30.0

2.00

10

3 Features

3.1 Compatible with all sonsorless brushless motor.

3.2 Use top quality electronic components to enhance the current endurance ability of the ESC.

3.3 Excellent start-up, acceleration and linearity features.

3.4 With 3 running modes: Racing mode (Forward), Forward/Backward mode and Rock Crawler mode.

3.5 With 4 steps of maximum reverse force adjustment.

3.6 Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment.

3.7 With 9 start modes (Also called "Punch" ) from "Soft" to "Very aggressive" to suitable for different tracks.

3.8 Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection.

3.9 With 8 steps of timing adjustment to get the best compatibility with various of motors.
3.10 Easily program with only one button and compatible with pocket-sized program card.

3.11 The ESC is USB supported. The firmware of the ESC can be updated through an USB adapter on the Advanced LCD Program Box (Optional device).

3.12 Motor uses top quality materials:
       Aluminium shell (case)
        High quality magnets
       Copper wires of high temperature endurance
        Good quality bearings.
3.13  Dustproof design for the motor.

3 Programmable Items

For detail information, please read the user manual for reference.

These items are all compatiable with the EZRUN Combo A3 w/ 25A-SL ESC +12T 7800KV Brushless Motor System for 1/18 Car (Version 2)
