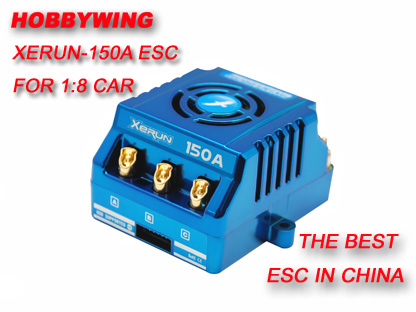

HobbyWing 1/8 Scale C-Xerun 150A Brushless ESC
1.1 Output: Continuous current 150A, burst current 950A.
1.2 Input: 6-18 cells NiMH/NiCd or 2-6 cells LiPo.
1.3 BEC Output: 5.75V/3A (Switch mode built-in BEC).
1.4 Resistance: 0.0002 Ohm.
1.5 Motor Supported: Sensorless and sensored brushless motors
1.6 Suitable Brushless Motor:
When working with 4 cells Lipo: >= 4.5T (KV<=3000)
When working with 6 cells Lipo: >= 6.0T (KV<=2400)
The above T number is the value of a 4274 sized motor (Diameter=42mm, Length=74mm)
1.7 Suitable Car: 1/8 Buggy / Truggy / Monster.
1.8 Size: 58mm(L) * 46.5mm(W) * 35mm(H).
1.9 Weight: 105g(Without wires)
1.1 Compatible with all sensorless brushless motors and most of sensored brushless motors such as Novak, LRP and Feigao, etc.
1.2 Excellent start-up, acceleration and linearity features.
1.3 3 running modes (Forward only with brake, Forward/Reverse with brake, Forward/Reverse immediately)
1.4 4 steps of maximum reverse force adjustment.
1.5 Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment.
1.6 9 start modes (Also called “Punch”) from “very soft (Level 1)” to “very aggressive (Level 9)”.
1.7 Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
1.8 8 steps of timing adjustment by software.
1.9 Built-in switch mode BEC has a powerful output to supply all the electronic equipments.
1.10 Easily program with only one button and compatible with pocket-sized Program Card.
1.11 Firmware can be updated through an USB adapter (Optional equipment).
1.12 Splash proof and dustproof.
1.13 Stable and reliable.
